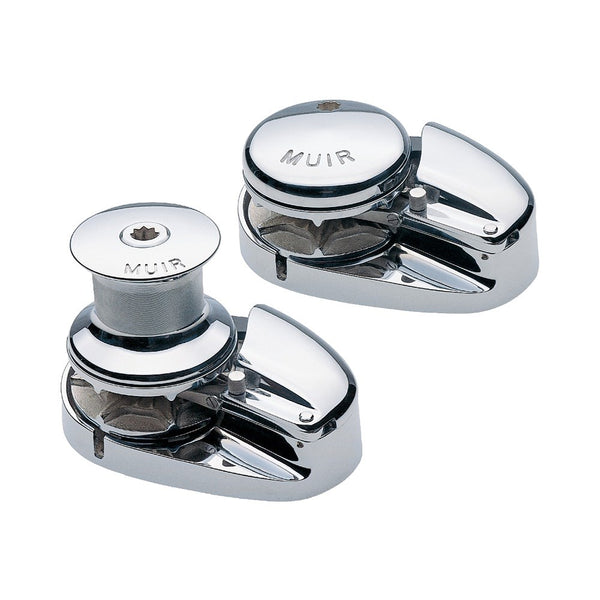

Muir VR3500 / VRC3500 Storm Stainless Steel Vertical Windlass

  • Rope chain combination gypsy for rope and chain combination or chain only
  • Quick release integrated swivel chain pipe cover
  • Gypsy with capstan (VRC) or gypsy with low profile clutch top arrangement (VR)
  • Heavy duty marine grade, dual direction motor in 12 Vdc, 24 Vdc, Hydraulic & AC
  • Polished Stainless steel components
  • Independent gypsy and capstan operation
  • Capstan model features heavy duty fluted finish for increased grip
  • Self-aligning gearbox / adaptor
  • Stainless steel shaft
  • Cone clutch / brake
  • Stainless steel mounting bolts
  • Shaft seal
  • Lubricating grease nipple
  • Clutch release handle
  • Rope Chain Management System (RCMS)
  • Installation/Operation booklet

Vessel Length

15 - 24 m (48 - 77 ft)

Power Supply

12 / 24 Vdc / AC Power

Motor

1500 W

Hydraulic Pressure

10 MPa (1450 psi)

Hydraulic Flow

28 L/min (7.5 gal/min)

Max Load

1590 kg (3500 lb)

Work Load

397 kg (875 lb)

Amps Work Load

150 / 85

Max Line Speed

13.5 m / min (44 ft / min)

Chain Size

8 - 10 - 13 mm (5/16 - 3/8 - 1/2”)

Rope Size

14 - 16 - 19 mm (9/16 - 5/8 - 3/4”)

Net Weight

DC VR 42 kg (92 lb)

DC VRC 46 kg (101 lb)

HYD VR 38 kg (84 lb)

HYD VRC 42 kg (92 lb)

Manual Operation

MORS (Optional)

MOS (Optional)
