*** USE OPTION [1] TO SELECT SHACKLE SIZE

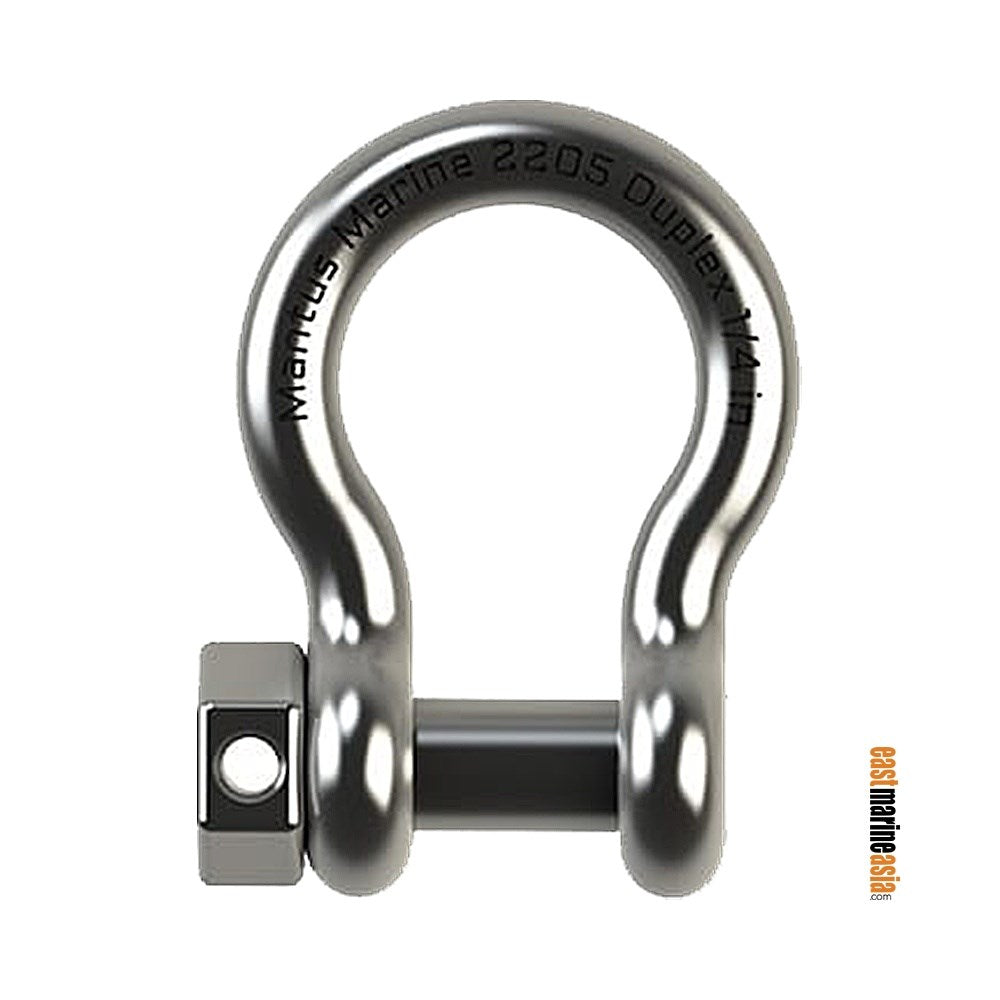

The Mantus Anchor Bow Shackle is forged from 2205 Duplex Stainless Steel, delivering exceptional strength and corrosion resistance for demanding marine applications. Designed specifically for anchor systems, it features a flush hex-head pin for smooth passage through bow rollers and easy operation with standard tools.
Features
👉🏻Forged from premium 2205 Duplex Stainless Steel
👉🏻Flush hex-head pin passes smoothly through bow rollers
👉🏻Easily tightened or removed using a socket or adjustable wrench
👉🏻Safety-wire hole helps prevent pin loosening
👉🏻High-strength design with a breaking strength approximately 5 times the Working Load Limit (WLL)
👉🏻Ideal for anchors, anchor chains, yachts, sailboats and powerboats
Material Information
The official material designation is 2205 Duplex Stainless Steel. Some marine and industrial suppliers commonly refer to this material as SS318. However, SS318 is a trade or commonly used name rather than the official grade designation.
2205 Duplex Stainless Steel is magnetic, unlike standard 316 stainless steel. This is a normal characteristic of duplex stainless steel and does not indicate inferior quality or corrosion resistance.
Compared to 316 stainless steel, 2205 Duplex Stainless Steel offers significantly higher strength and improved resistance to marine corrosion.
Working Load Limit (kg) Recommendations* |
Ultimate Breaking Strength (kg) |
Size |
2205 Duplex Forged Stainless Shackles |
Hi Test G4 Chain (artificially inflated use the bold number) |
G3 Chain Proof-coil,BBB |
2205 Drop Forged Stainless Shackles |
Hi Test G4 Chain |
G3 Chain Proof-coil, BBB |
|
6 mm
(1/4")
|
590 |
1,179
/ 885
|
590 |
2,948 |
3,538 |
2,359 |
|
8 mm
(5/16")
|
839 |
1,769
/ 1,315
|
862 |
4,128 |
5,307 |
3,447 |
|
10 mm
(3/8")
|
885 |
2,449
/ 1,837
|
1,202 |
4,423 |
7,348 |
4,808 |
|
11 mm
(7/16")
|
1,179 |
3,266
/ 2,449
|
N/A |
5,897 |
9,798 |
N/A |
|
12 mm
(1/2")
|
1,769 |
4,173
/ 3,130
|
2,041 |
8,845 |
12,519 |
8,165 |
|
16 mm
(5/8")
|
2,359 |
5,897
/ 4,423
|
|
11,793 |
17,690 |
|
|
19 mm
(3/4")
|
4,218 |
|
|
16,783 |
|
|
Shackle Selection Guide
📝For most applications, choose a shackle one size larger than the anchor chain for proper fit and strength.
📝For G30 galvanised chain, a shackle one size larger will provide similar strength to the chain.
📝For G43 High-Test chain, a larger shackle is required for fit, although the shackle strength will typically be lower than the chain strength. A swivel may be recommended for higher-strength chain systems.
Applications
✅ Anchor and chain connections
✅ Sailing yachts
✅ Powerboats
✅ Cruising vessels
✅ Offshore and coastal marine use
