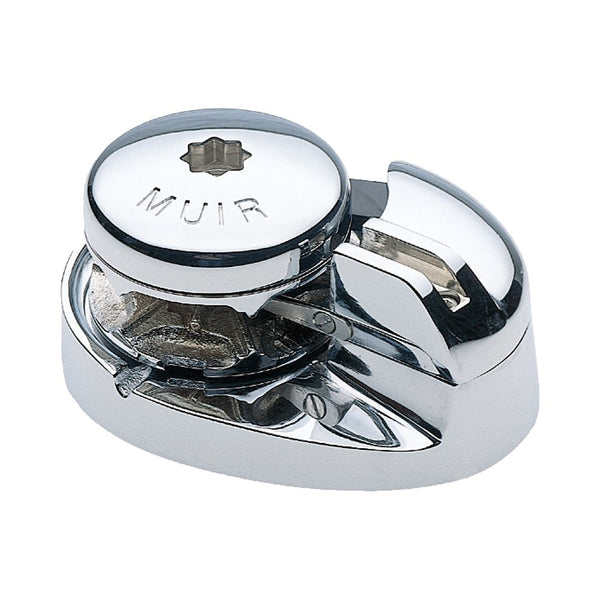

Muir Atlantic Automatic Freefalls 600 Vertical Windlass

Write a review
| Ask a question

Special pricing available!

To pre-order this product call us +66 (0) 76 239 113 or contact below:


Имя:*

Электронная почта:*
Номер телефона:
Сообщение: *
* Обязательные поля
Looking for wholesale pricing & volume discounts? Become a dealer! »»
Описание продукта

Please contact us (sales@eastmarineasia.com ) or use the form above for price quote.

*** Worldwide drop-ship directly from factory ***

Please include information like your intended voltage (or hydraulic type) and size of your chain.


Muir Atlantic Automatic Freefalls 600

  • Automatic freefall capability
  • Rope chain combination gypsy for rope and chain combination or chain only
  • Rope Chain Management System (RCMS)
  • Sleek low-profile clutch top arrangement
  • Heavy duty dual direction motor in 12 Vdc & 24 Vdc
  • Luxury chromed finish over marine grade bronze
  • Self-aligning gearbox / adaptor
  • Stainless steel shaft
  • Cone clutch / brake
  • Stainless steel mounting bolts
  • Shaft seal
  • Lubricating grease nipple
  • Clutch release handle
  • Installation / operation booklet

Vessel Length

5 - 9 m (16 - 29 ft)

Power Supply

12 Vdc

Motor

600 W

Max Load

300 kg (660 lb)

Work Load

75 kg (165 lb)

Amps Work Load

40 / 80

Max Line Speed

20 m / min (64 ft / min)

Chain Size

6 - 7 mm (1/4 - 9/32”)

Rope Size

12 mm (1/2”)

Net Weight

12 kg (26 lb)


SKU: #
