Описание продукта

Please contact us (sales@eastmarineasia.com ) or use the form above for price quote.

*** Worldwide drop-ship directly from factory ***

Please include information like your intended voltage (or hydraulic type) and size of your chain.

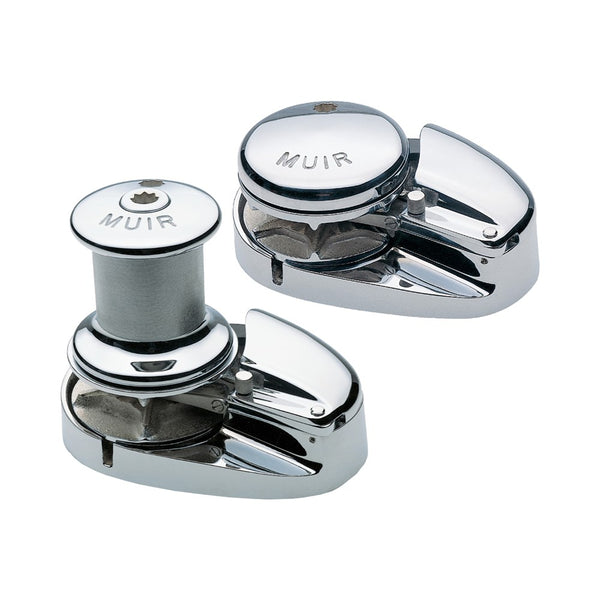

Muir Storm VR4000 / VRC4000 Stainless Steel Vertical Windlass

  • Rope chain combination gypsy for rope and chain combination or chain only
  • Quick release integrated swivel chain pipe cover
  • Gypsy with capstan (VRC) or gypsy with low profile clutch top arrangement (VR)
  • Heavy duty marine grade, dual direction motor in 12 Vdc, 24 Vdc, Hydraulic & AC
  • Polished Stainless steel components
  • Independent gypsy and capstan operation
  • Capstan model features heavy duty fluted finish for increased grip
  • Self-aligning gearbox / adaptor
  • Stainless steel shaft
  • Cone clutch / brake
  • Stainless steel mounting bolts
  • Shaft seal
  • Lubricating grease nipple
  • Clutch release handle
  • Rope Chain Management System (RCMS)
  • Installation/Operation booklet

Vessel Length

18 - 26 m (58 - 83 ft)

Power Supply

12 / 24 Vdc / AC Power

Motor

2000 W

Hydraulic Pressure

20 MPa (2900 psi)

Hydraulic Flow

22 L/min (5.8 gal/min)

Max Load

1818 kg (4000 lb)

Work Load

720 kg (1584 lb)

Amps Work Load

150 / 85

Max Line Speed

20 m / min (66 ft / min)

Chain Size

8 - 10 - 13 mm (5/16 - 3/8 - 1/2”)

Rope Size

14 - 16 - 19 mm (9/16 - 5/8 - 3/4”)

Net Weight

DC VR 54 kg (119 lb)

DC VRC 58 kg (119 lb)

HYD VR 50 kg (110 lb)

HYD VRC 55 kg (121 lb)

Manual Operation

MORS (Standard)
