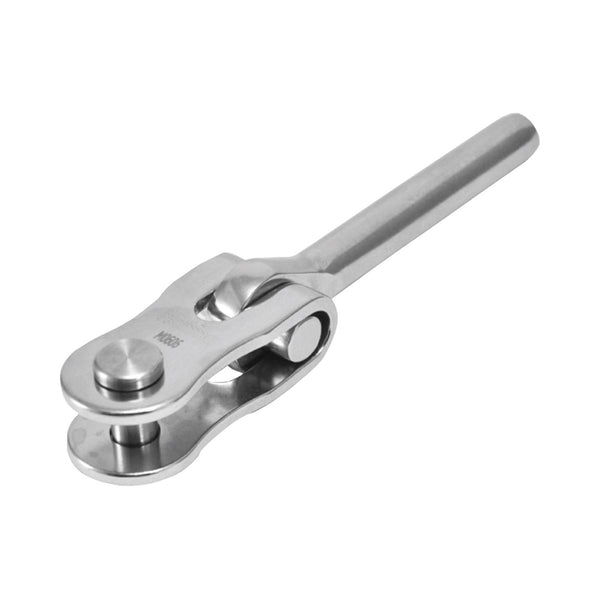

Hamma Regatta Swage Toggle

฿960

Выбор варианта

To pre-order this variant call +66 (0) 76 239 113 or contact us:

Имя:*

Электронная почта:*

Номер телефона:

Сообщение: *

* Обязательные поля

Looking for wholesale pricing & volume discounts? Become a dealer! »»

Описание продукта

Use Option (1) to select Cable Size and then Option (2) to select Pin Size

hamma? Regatta Swage Toggles has been designed to match the extreme high performance of the hamma? X and hamma? Pro cables.

Features
- Marine grade 316 stainless steel
- High corrosion resistance
- Aesthetically pleasing
- 30% higher breaking strength to meet and exceed hamma? Pro Strand
- Swage toggle plate articulates, therefore reducing the impact of vibrations on the wire rope

Cable Size	Pin Size	MBS (kgf)	MBS (kN)
4.0 mm	5/16"	2,400	23.5
5.0 mm	5/16"	2,400	23.5
5.0 mm	3/8"	3,600	35.3
6.0 mm	3/8"	3,600	35.3
6.0 mm	7/16"	5,000	49.1
6.0 mm	1/2"	6,800	66.7
7.0 mm	1/2"	6,800	66.7
8.0 mm	1/2"	6,800	66.7
8.0 mm	5/8"	10,900	106.9
9.0 mm	5/8"	10,900	106.9
10.0 mm	5/8"	10,900	106.9
12.0 mm	3/4"	15,900	156.9
14.0 mm	7/8"	21,500	212.9
16.0 mm	1"	28,300	277.6
5/32"	5/16"	2,400	23.5
3/16"	5/16"	2,400	23.5
3/16"	3/8"	3,600	35.3
7/32"	3/8"	3,600	35.3
1/4"	7/16"	5,000	49.1
1/4"	1/2"	6,800	66.7
9/32"	1/2"	6,800	66.7
5/16"	1/2"	6,800	66.7
5/16"	5/8"	10,900	106.9
3/8"	5/8"	10,900	106.9
7/16"	3/4"	15,900	156.9
1/2"	7/8"	21,500	212.9
5/8"	1"	28,300	277.6
