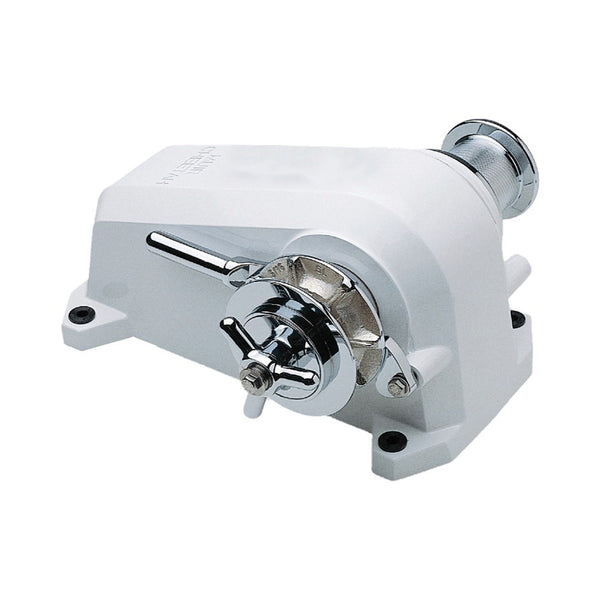

Muir HR2500 Cheetah Compact Horizontal Windlass
- Rope chain combination gypsy for rope & chain combination or chain only
- Manual Override System (MORS)
-
Gypsy lock / pawl
- Cleat on housing
-
Heavy duty dual direction motor in 12 Vdc, 24 Vdc & Hydraulic
- Durable marine grade white gloss finish alloy housing
- Fully enclosed motor & gearbox
- Independent gypsy and capstan operation
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- Stainless steel drive shaft
- Cone clutch/brake
- Shaft seal
- Clutch release handle
- Installation/Operation booklet
Vessel Length |
13 - 17 m (42 - 55 ft) |
Power Supply |
12 / 24 Vdc |
Motor |
1200 W |
Hydraulic Pressure |
10 MPa (1450 psi) |
Hydraulic Flow |
20 L/min (5.5 gal/min) |
Max Load |
1136 kg (2500 lb) |
Work Load |
284 kg (624 lb) |
Amps Work Load |
120 / 75 |
Max Line Speed |
15 m / min (48 ft / min) |
Chain Size |
8 - 10 - 13 mm (5/16 - 3/8 - 3/4”) |
Rope Size |
14 - 16 - 19 mm (9/16 - 5/8 - 3/4”) |
Net Weight |
DC 36 kg (79 lb)
HYD 35 kg (77 lb)
|
Manual Operation |
MORS (Standard) |
